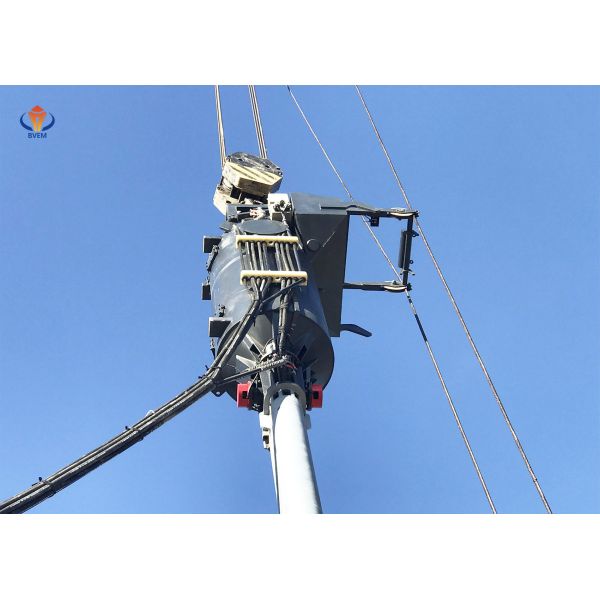

Powerful electrical bottom feed vibroflot used for vibro pile foundation engineering 180KW
| The Bottom Feed Electrical Vibroflot Spec. |
| Type | BJZC-BFS-400-180 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Vibration force(kN) | 200-300 |
| Hopper volume(m³) | 1.2 |
| Control type | Inverter Control |
| Air flow rate(m³/min) | 10 |
| Vibrator size L/W/H(mm) | 2600×600×700 |
| The bin size L/W/H(mm) | 4800×1300×(1300-1500) |
Vibro techniques
A foundation treatment method by joint action of horizontal vibration and high pressure water to compact the loose sand layer or formed in soft soil of stone column to compose the composite foundation with original soil together.
Vibroflot characteristics
The vibroflot barrel and the motor housing are made of high strength forged steel
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect
Unique circulating water cooled motor structure, good heat dissipation with high efficiency
Both vibroflot and motor are imported with FAG original bearing
Double-deck vibrating head design with good resistance, easy to replace
Unique bearing oil lubrication, further improve bearing life
Profile of Bottom Feed Vibroflotation:
As a extension of vibroflotation technique, bottom feed method created a larger range of vibroflotation application. In terms of its feature, vibroflotation can be conducted to treat the foundation in those projects even under following situation:
1.Silty or silty clay soil with undrained shearing strength less than 20Kpa
2, Underwater of offshore stone column construction
3. Projects under the strict controlling of pile diameter
4. Place where the water resource are used in limitation
5. Place where the waste water are strictly prohibit to discharge
Bottom feed method vbroflotation construction need a special vibroflot equipment with bottom feed system to realize. This professional equipment are commonly composed of :
1. Electrical or hydraulic vibroflot system ( vibroflot, damper, extension tube and electrical cabinet )
2. Feeding system ( feeding tube , damper )
3. Stock bin system ( double bin or single bin )
4. Material supply system ( lifting hopper )
5. Controlling system ( Valve controlling , air pressure controlling, material level controlling )
Due to the diversity of engineering condition, bottom feed vibroflot need to be customized for production.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
China first use of 75KW vibrator for the 30-meter depth sand soil treatment(three gorges project)
China first use of hydraulic vibrator for the treatment of the 240-meter chimney foundation
China first use of hydulic vibrator for the treatment of 32m depth foundation of hydraulic power station
The first one in China who treated the base of oil storage tank with a diameter of more than 60m by vibroflotation method
